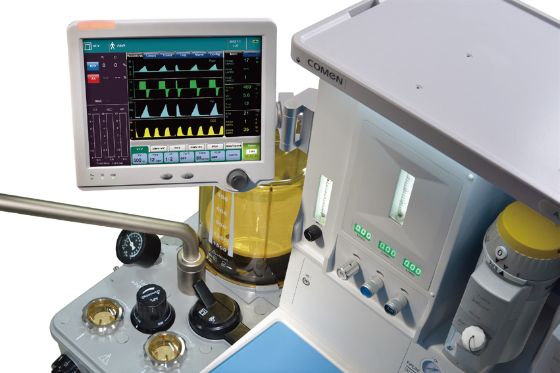

Anesthesia Workstation (COMEN A-700)
Anesthesia Workstation delivery system designed for controlled administration of anesthetic gases and respiratory support during surgical procedures.
Installation & commissioningAfter-sales supportAMC / service
Overview
Anesthesia Workstation delivery system designed for controlled administration of anesthetic gases and respiratory support during surgical procedures.
Features
12.1" four-way rotating touch screen; maximum 2-level menu for every operation
Real-time airway pressure, flow, volume, compliance and resistance with P-V, F-V and P-F loops
SIMV, SIMV + PS and pressure support ventilation with apnea backup; electronic PEEP
Minimum tidal volume down to 5 ml — neonates to adults
Dual high-precision flow sensors (7%) monitor inspiration and expiration
Automatic compensation for fresh-gas flow, system compliance and leakage
Breathing-circuit leakage below 65 ml/min for low-flow anaesthesia
Anaesthetic gas monitoring with automatic agent identification and MAC (optional AG / EtCO₂ / BIS modules)
PPSU breathing circuit, autoclavable at 134 °C; built-in heater prevents condensation
CO₂ bypass and one-hand soda-lime canister — change during surgery without leakage
Electronic flow meter with backlight; 60-hour trends and 2000 event records
Options: AGSS, ACGO, GCX bracket, Comen modular monitor; central brake on AX-700
Specifications
Key Specifications — AX-600 / AX-700
| Display | 12.1" four-way rotating touch screen |
|---|---|
| Ventilation | SIMV, SIMV + PS, PSV with apnea backup, electronic PEEP |
| Minimum tidal volume | 5 ml |
| Flow sensors | Dual high-precision (7%), inspiration & expiration |
| Valve | NORGREN digital proportional valve, closed-loop control |
| Compensation | Fresh-gas flow, compliance and leakage |
| Circuit leakage | < 65 ml/min |

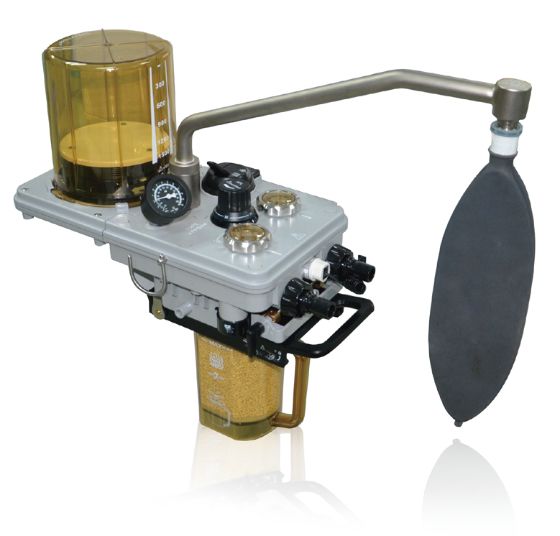

| Breathing system | Closed and semi-closed; PPSU, autoclavable at 134 °C; built-in heater; CO₂ bypass |
| Gas monitoring | AG, EtCO₂, BIS modules (optional); auto agent ID & MAC |
| Data | 60-hour trends; 2000 event records |
| Workbench | 1170 cm²; adjustable deck light; lockable rotating drawer |
| Quick O₂ | Pressure on vaporizer < 1.6 kPa during O₂ flush |
| Options | AGSS, ACGO, auxiliary O₂, GCX bracket, central brake (AX-700) |
Specifications are for reference only and may change without notice.
Applications
Operation TheatreGeneral SurgeryCritical Care
System Components
Anesthesia workstation, ventilator, breathing system and monitoring components.
Accessories
Breathing circuits, masks, sensors and compatible accessories.
