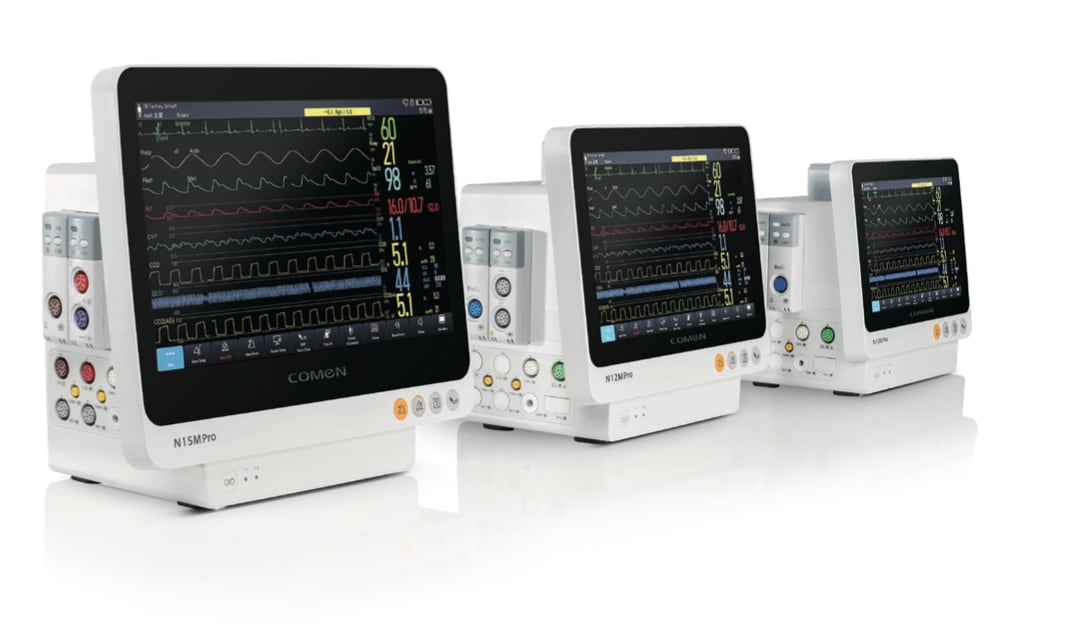

Patient Monitor (COMEN ND 12)

Name: Patient Monitor (COMEN ND 12)
Brand: InMedica Devices

Patient monitoring system designed for continuous monitoring of vital parameters in ICU, emergency, OT and critical-care environments.

Installation & commissioningAfter-sales supportAMC / service

Overview

Patient monitoring system designed for continuous monitoring of vital parameters in ICU, emergency, OT and critical-care environments.

Features

Medical-grade colour TFT display — 10.4", 12.1" or 15", optional capacitive touch screen

Standard ECG, SpO₂, NIBP, temperature and respiration; EtCO₂, IBP and cardiac output on ND12 / ND15

3/5/6/12-lead ECG with automatic lead recognition and Glasgow 12-lead resting ECG analysis

38-type arrhythmia analysis, ST-segment and QT/QTc analysis for adult, paediatric and neonatal patients

Comen, Masimo or Nellcor SpO₂ modules, with dual-SpO₂ and perfusion index

Clinical assistive apps: Sepsis guide, EWS, GCS, 24-hour ECG summary and CCHD screening

Drug, haemodynamic, oxygenation, ventilation and renal calculations

240 hours of tabular and graphic trends, 72-hour waveform review, 48-hour arrhythmia recall

Built-in Wi-Fi, HL7 and eCenter central monitoring; HIS / EMR compatible

Built-in 3-channel thermal recorder

Li-ion battery — up to 8 hours with the optional 5000 mAh pack

Specifications

Models

Parameter	ND10	ND12	ND15
Display	10.4", 800 × 600	12.1", 800 × 600	15", 1024 × 768
Waveforms	Up to 8	Up to 8	Up to 10
Size	300 × 210 × 189 mm	340 × 236 × 185 mm	394 × 280 × 189 mm
Weight	3.5 kg	4 kg	5 kg
EtCO₂, IBP, cardiac output	Not available	Supported	Supported
Battery runtime (2500 mAh)	≥ 4 h	≥ 4 h	≥ 2.5 h
Battery runtime (5000 mAh, optional)	≥ 8 h	≥ 8 h	≥ 6 h
Protection level	IPX1

Key Parameters

ECG
Lead sets	3, 5, 6 or 12-lead, automatic recognition
Heart rate	Adult 15–300 bpm; paediatric/neonate 15–350 bpm
Arrhythmia	38 classifications
ST analysis	−2.5 to +2.5 mV
QT / QTc	200 – 800 ms
Defibrillation protection	5000 VAC (360 J), recovery ≤ 5 s
Respiration
Method / range	RA–LL impedance, 0 – 200 rpm; apnea alarm 10 – 60 s
NIBP
Method / modes	Automatic oscillometric; manual, auto, STAT and sequence
Range / accuracy	0 – 300 mmHg, ±3 mmHg
Auto interval	1 – 720 min
SpO₂
Modules	Comen, Masimo or Nellcor
Range / accuracy	0 – 100%; ±2% adult/paediatric, ±3% neonate (70 – 100%)
Temperature
Channels / range	2 channels, 0 – 50 °C, ±0.1 °C
EtCO₂ (ND12 / ND15)
Modules	Comen, Masimo or CapnoTrak — mainstream or sidestream
Range	0 – 150 mmHg (Comen); awRR 0 – 150 rpm
IBP (ND12 / ND15)
Channels / range	Up to 2 channels, −50 to 370 mmHg; PPV, SPV, PAWP
Cardiac Output (ND12 / ND15)
Method / range	Thermodilution, 0.1 – 20 L/min
Data & Connectivity
Trends	240 h tabular & graphic; 3500 NIBP groups; 2500 alarm events
Network	Wi-Fi 802.11a/b/g/n, LAN, HL7 V2.6, eCenter CMS
Ports	2 × USB 2.0, VGA, network, optional multi-function
Recorder	Built-in thermal, 3 channels, 50 mm
Power & Environment
Power supply	100 – 240 V, 50/60 Hz
Battery	Li-ion 10.8 V, 2500 mAh (5000 mAh optional)
Operating conditions	5 – 40 °C, 15 – 95% RH (non-condensing)
