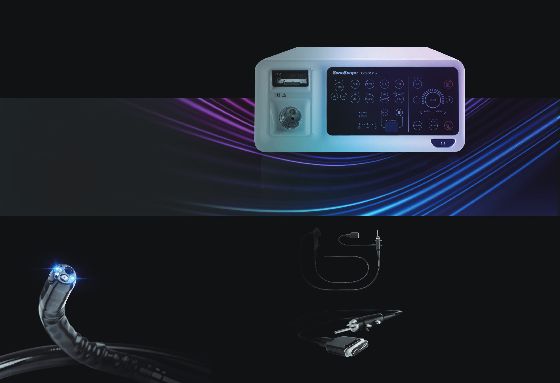

X-2200 Endoscopy System (SonoScape)
Compact HD endoscopy system for efficient clinical imaging.
Installation & commissioningAfter-sales supportAMC / service
Overview
Compact HD endoscopy system for efficient clinical imaging.
Features
Compact, one-stop HD video system with integrated 2-LED light source
White light, enhanced white light and SFI / VIST chromoendoscopy for clearer mucosa and vessels
1080p output (2 × DVI, 2 × SDI) and up to 2× digital zoom
All essential settings on the front control panel; data saved to external USB storage
2200 series scopes with upgraded tubing for patient and operator comfort
One-step, fully waterproof scope connection with hot plugging
Water-jet on every scope; long-life LED lighting
Specifications
X-2200 Pro Video System Center
| Video output | 1080p, 2 × DVI, 2 × SDI |
|---|---|
| Light modes | WL, eWL, SFI / VIST chromoendoscopy |
| Main lamp | White LED 70 W, blue-violet LED 130 W |
| Digital zoom | Up to 2.0× |
| IRIS | Peak / Average / Auto |
| Colour adjustment | Red, blue, chroma (±8 levels) |
| Brightness | Auto / manual, 1 – 19 levels |
| Image enhancement | 1 – 3 levels, 0 – 8 steps per level |
| White balance | Auto-saved |
| Air feeding | 4 levels (Off / L / M / H) |
| Transillumination | 6 – 8 seconds |
| Freeze | Scope button, keyboard, footswitch or front-panel SNAP |
| Data management | External USB disk |
| Hot plugging | Yes |
| Dimensions / weight | 491 × 376 × 179 mm / 15.5 kg |
2200 Series Video Scopes
| Parameter | EG-2200 (gastroscope) | EC-2200 (colonoscope) | EC-2200L (colonoscope) |
|---|---|---|---|
| Field of view | 140° | ||
| Depth of view | 3 – 100 mm | ||
| Distal-end diameter | 9.3 mm | 12.0 mm | 12.0 mm |
| Insertion tube diameter | 9.3 mm | 12.5 mm | 12.5 mm |
| Instrument channel | 2.8 mm | 3.8 mm | 3.8 mm |
| Angulation | Up 210°, down 90°, L/R 100° | Up/down 180°, L/R 160° | Up/down 180°, L/R 160° |
| Working length | 1050 mm | 1350 mm | 1700 mm |
| Total length | 1400 mm | 1700 mm | 2050 mm |
| Water-jet | Yes | ||
| Connection | One-step, waterproof | ||
Specifications are for reference only and may change without notice.
Applications
Gastroenterologygastroscopycolonoscopy
System Components
Image processor, light source, monitor and compatible scopes.
Accessories
Endoscopes, footswitch, keyboard, trolley and cables.
