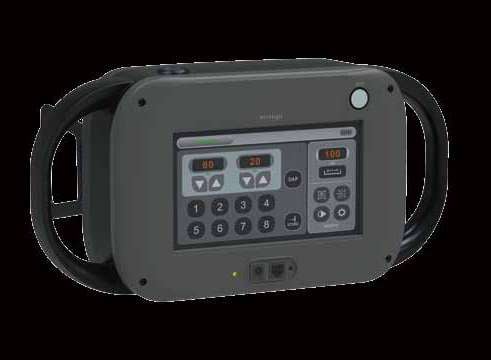

Digital Portable X-Ray — EDUSOFT ERAY SMART 5HS / 6HS
Reliable portable X-Ray solution designed for hospitals and diagnostic centres, supporting routine and specialized radiographic imaging.
Installation & commissioningAfter-sales supportAMC / service
Overview
Reliable portable X-Ray solution designed for hospitals and diagnostic centres, supporting routine and specialized radiographic imaging.
Features
90 kV / up to 10 mA output for consistently crisp, high-resolution images
Ultra-light handheld design — about 3 kg, no power cords, no complex setup
Built-in AI scatter correction reduces radiation noise by over 50%
Patient motion alerts, intelligent distance sensor and bookmarking tools
Instant image preview on a mobile device (optional)
Integrated DAP meter to monitor and manage radiation dose
Interface available in English, Hindi and Tamil
Suited to emergency rooms, ICUs, mobile units, dental setups and outreach camps
Specifications
ERAY SMART 5HS / 6HS
| X-Ray Generator | |
|---|---|
| Power output | Up to 450 W |
| kV range | 50 – 90 kV |
| mA range | 2 – 10 mA |
| mAs range | 0.10 – 10 mAs |
| Collimator | |
| Field size (SID) | 43 cm × 43 cm @ 100 cm SID |
| Lamp | 3.3 V LED |
| X-Ray Tube | |
| Model / type | OX80-0.8 (Italy) / Stationary anode |
| Focal spot | 0.8 mm |
| Target angle | 16° |
| Anode heat storage capacity | 8000 J (11 kHU) |
| Input power (at 0.1 s) | 1280 W |
| Inherent filtration | 2.5 mm Al eq. |
| Power | |
| Battery | Li-polymer, 22.2 VDC, 2,200 mAh |
| Exposures per charge | About 150 (70 kV, 5 mAs) |
| AC power adapter | AC 100–240 V, 50/60 Hz (25.2 V / 1.5 A) |
| Charging time | About 1.0 – 1.5 hours |
| Physical | |
| Weight (main body) | 3 kg |
| Size (main body) | 249 × 194 × 194 mm |
Specifications are for reference only and may change without notice.
Applications
General RadiographyChest ImagingOrthopedicsEmergency Imaging
System Components
X-Ray unit, digital detector, workstation/display and accessories.
Accessories
Detector, cables, trolley and compatible accessories.
