Digital Fixed X-Ray — EDUSOFT ERAY RAD Series (10–80 kW)
Reliable digital X-ray solution for hospitals and diagnostic centres, supporting routine and specialized radiographic imaging.
Installation & commissioningAfter-sales supportAMC / service
Overview
Reliable digital X-ray solution for hospitals and diagnostic centres, supporting routine and specialized radiographic imaging.
Features
Floor-mounted, general-purpose digital radiography system from 10 kW to 80 kW
High-frequency generator (220 kHz) for lower radiation and skin dose with high image quality
Soft handling — the tube head moves with minimal effort, reducing operator fatigue
1,280+ anatomical programs (APR) for consistently clear images

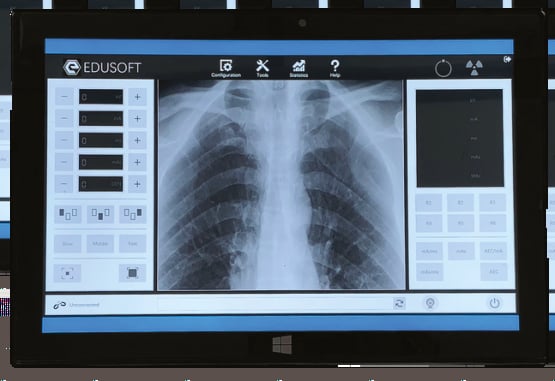

10" touch-screen console to set kV, mA, mAs and time
Multi-leaf collimator
Vertical chest bucky stand with 17" × 17" flat panel, tilting in 6 steps of 15° for lying, upright or oblique exams
Horizontal bucky table as standard; multi-position table optional
ERAY Gold wireless flat panel detector, 14" × 17" or 17" × 17"
Compact, space-saving design suited to clinics, nursing homes, ICUs, OTs and trauma centres
Dual-action hand switch with retractable cord for operator radiation protection
Specifications
ERAY RAD Series
| Model | RAD 200S | RAD 250S | RAD 300S | RAD 500S | RAD 630S | RAD 1000S |
|---|---|---|---|---|---|---|
| Generator | ||||||
| Generator power | 10 kW | 20 kW | 32 kW | 40 kW | 50 kW | 80 kW |
| Inverter frequency | 220 kHz | |||||
| Line supply | Three phase, 380 V, 50/60 Hz (±10%) | |||||
| kV range | 40 – 125 kV | 40 – 125 kV | 40 – 125 kV | 40 – 125 kV | 40 – 150 kV | 40 – 150 kV |
| mA range | 10 – 200 mA | 10 – 250 mA | 10 – 300 mA | 10 – 500 mA | 10 – 630 mA | 10 – 1000 mA |
| Timer range | 0.01 – 10 s | |||||
| mAs range | 0.1 – 200 mAs | 0.1 – 250 mAs | 0.1 – 300 mAs | 0.1 – 320 mAs | 0.1 – 320 mAs | 0.1 – 320 mAs |
| Max. power output | 125 kVp–80 mA / 100 kVp–100 mA | 125 kVp–160 mA / 100 kVp–200 mA | 125 kVp–250 mA / 100 kVp–320 mA | 150 kVp–260 mA / 80 kVp–500 mA | 150 kVp–333 mA / 80 kVp–630 mA | 150 kVp–660 mA / 80 kVp–1000 mA |
| X-Ray Tube | ||||||
| Focal spot | 1.0 / 2.0 mm | 1.0 / 2.0 mm | 1.0 / 2.0 mm | 1.0 / 2.0 mm | 0.6 / 1.5 mm | 0.6 / 1.2 mm |
| Max. anode heat | 140 kHU | 140 kHU | 140 kHU | 140 kHU | 200 kHU | 300 kHU (400 kHU optional) |
| Max. kV | 125 kV | 125 kV | 125 kV | 125 kV | 150 kV | 150 kV |
Tables & Stands
| X-ray table (standard) | Horizontal bucky table |
|---|---|
| X-ray table (optional) | Multi-position |
| Wall vertical bucky | Tilting (0° to 90° & −20°) |
| Chest bucky stand | Optional |
| X-ray accessories | Optional |

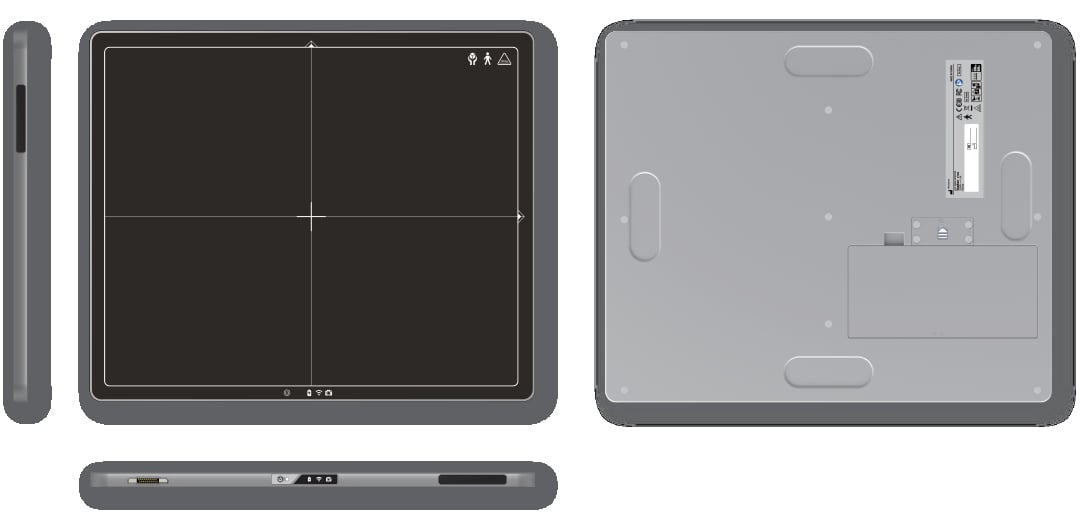

Flat Panel Detector — ERAY Gold
| Parameter | ERAY Gold 14 | ERAY Gold 17 |
|---|---|---|
| Dimensions | 383 × 460 × 15 mm | 460 × 460 × 15 mm |
| Sensor array | a-Si photodiode | |
| Scintillator | CsI / GOS | |
| Resolution | 2500 × 3052 | 3072 × 3072 |
| Pixel size | 140 µm | |
| Grayscale | 16 bit | |
| Wi-Fi | 802.11ac, 2 antennas, 2 s scan-to-display, AP mode | |
| Weight (with battery) | 2.7 kg | 3.2 kg |
| Drop height | 70 cm | |
| Housing | Mg-Al alloy | |
| Water resistance | IP56 | |
| Durability (face / point load) | 300 / 120 kg | |
| Trigger mode | AED mode | |
| Battery | Up to 8 hours (1000+ images at 30 s intervals) | |
| Operating conditions | 10 – 35 °C, 15 – 80% humidity | |
Specifications are for reference only and may change without notice.
Applications
General RadiographyChest ImagingOrthopedicsEmergency Imaging
System Components
X-ray generator, detector, X-ray tube, table/stand and workstation.
Accessories
Detector, cables, positioning accessories and compatible equipment.
