Anesthesia Workstation – COMEN AX-800
Premium anesthesia workstation with a 15" rotating touch screen, NORGREN proportional valve, Dräger Vapor 2000 vaporizers and electronic PEEP.
Installation & commissioningAfter-sales supportAMC / service
Overview
Premium anesthesia workstation with a 15" rotating touch screen, NORGREN proportional valve, Dräger Vapor 2000 vaporizers and electronic PEEP.
Features
15" four-way rotating touch screen
NORGREN (UK) digital proportional valve — 5 ms response, airflow up to 120 L/min, closed-loop control
Minimum tidal volume 5 ml (PCV) — neonates to adults
SIMV, SIMV + PS, pressure support with apnea backup and electronic PEEP
Dual high-precision (7%) flow sensors on inspiration and expiration
Automatic compensation for fresh-gas flow, system compliance and leakage; circuit leakage below 65 ml/min

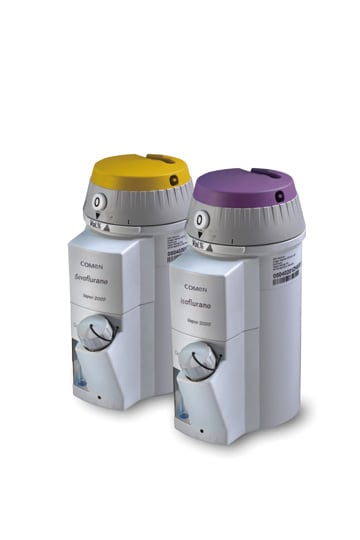

Dräger Vapor 2000 vaporizers with automatic temperature, pressure and volume compensation
Solvay PPSU breathing circuit — autoclavable at 134 °C, 1000+ sterilisation cycles; built-in heater
Saint-Gobain breathing tubes, LEGRIS quick connectors and STEINCO castors with central brake
Modular AG, EtCO₂ and BIS monitoring; backlit electronic flow meter
AGSS, ACGO, auxiliary O₂, adjustable deck light and 1170 cm² workbench
Specifications
Key Specifications — AX-800
| Display | 15" four-way rotating touch screen |
|---|---|
| Ventilation | SIMV, SIMV + PS, PSV with apnea backup, electronic PEEP |
| Minimum tidal volume | 5 ml (PCV) |
| Proportional valve | NORGREN, 5 ms response, up to 120 L/min |
| Flow sensors | Dual high-precision (7%) |
| Circuit leakage | < 65 ml/min |
| Vaporizer | Dräger Vapor 2000 (300 ml capacity) |
| Breathing system | Closed / semi-closed; PPSU, autoclavable at 134 °C; built-in heater; CO₂ bypass |
| Gas monitoring | Modular AG, EtCO₂, BIS; auto agent ID & MAC |
| Data | 60-hour trends; 2000 event records |
| Castors | STEINCO with central brake |
| Options | AGSS, ACGO, auxiliary O₂, GCX bracket, Comen C90 monitor |
Specifications are for reference only and may change without notice.
Applications
Operation TheatreGeneral SurgeryCritical Care
System Components
Anesthesia workstation, ventilator, vaporizers, breathing system and monitoring modules.
Accessories
Breathing circuits, masks, sensors and compatible accessories.
