C-Arm — EDUSOFT (ERAY Smart 5C)
Mobile C-Arm imaging system designed to provide real-time fluoroscopic imaging during surgical and interventional procedures.
Installation & commissioningAfter-sales supportAMC / service
Overview
Mobile C-Arm imaging system designed to provide real-time fluoroscopic imaging during surgical and interventional procedures.
Features
High power output — 5 kW generator for orthopaedic, spine, vascular, urology and pain-management procedures
Carbon-shielded 22 × 22 cm flat panel detector, ultra-sharp 139 µm pixel pitch
Auto collimation focuses on the area of interest to reduce unnecessary exposure
Automatic Brightness Stabilization (ABS) and pre-programmed imaging modes
27" high-resolution monitor with live + reference split screen
15" intuitive touch control panel that swivels and tilts

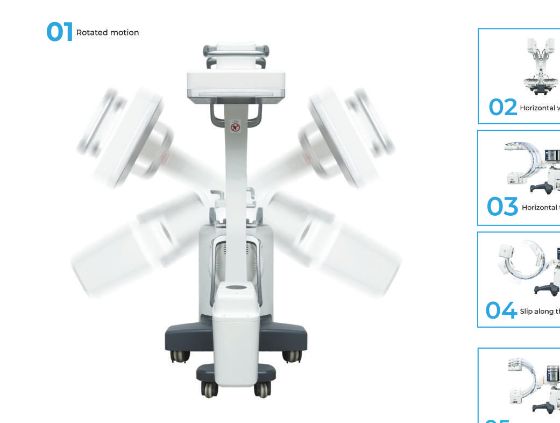

Fully counterbalanced C-arm stays at any angle; colour-coded axes and handles
DSA and roadmapping (optional) for vascular and interventional work
Real-time noise reduction, 1.5K CINE recording and live-to-reference image shift
Live DAP dose display with overdose warning; removable anti-scatter grid
Dual footswitch, two-way laser positioning and DICOM 3.0 / PACS compatibility
Standby power (UPS) — move between ORs without losing data
Specifications
ERAY SMART 5C
| Generator | |
|---|---|
| Power | 5 kW |
| Max. voltage | 125 kV |
| kV range | 40 – 125 kV |
| mA in pulse fluoro | Max. 32 mA |
| mA in continuous fluoroscopy | Max. 6.3 mA |
| mA in digital radiography | Max. 100 mA |
| Generator frequency | 50 kHz |
| X-Ray Tube | |
| Type | Stationary anode |
| Focal spot | 0.6 / 1.2 mm |
| Anode heat capacity | 80 kHU |
| Collimator | Fixed (standard) / Motorized (optional) |
| Flat Panel Detector | |
| Technology | Amorphous silicon (a-Si) with CsI |
| Size | 22 cm × 22 cm |
| Image matrix | 1.5K × 1.5K |
| Frame rate | 18 frames/s |
| Pixel pitch | 139 µm |
| AD conversion | 16 bit |
| C-Arm | |
| L × W × H | 195.1 × 85.3 × 167.4 cm |
| SID | 1100 mm |
| Free space in arc | 880 mm |
| Depth in arc | 710 mm |
| Orbital rotation | 150° (+117° / −33°) |
| Lateral rotation | 450° (+225° / −225°) |
| Wig-wag | 30° (±15°) |
| Horizontal travel | 200 mm |
| Vertical travel | 400 mm (motorized) |
| Weight | 300 kg |
| Touch Control Panel | |
| Size | 15" touch screen |
| Swivel | 360° (±180°) |
| Tilt | 120° (+90° / −30°) |
| Monitor | |
| Size | 27" high-resolution |
| Display | Split screen (live + reference), anti-glare |
| Mounting | Mobile monitor trolley |
| Image matrix | 2.5K × 1.5K |
| Other | |
| Exposure control | Wired hand switch & footswitch |
| Laser localizer | Two-way laser positioning |
| DAP | Available |
| Grid | Yes |
| UPS power supply | Yes |
| DSA | Optional |
| Roadmapping | Optional |
| Image storage | 10,000 images |
| Power supply | Single phase 220–240 V AC, 50 Hz; 3 m cable |
| Voltage stabilizer | Available |
| Connectivity | USB |
