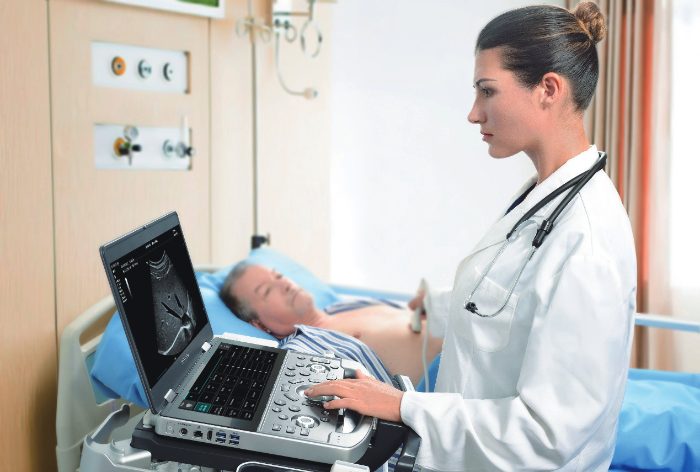

Dedicated Portable Ultrasound System – MX7
A lightweight portable ultrasound system designed for diagnostic confidence and mobility across clinical environments.
Installation & commissioningAfter-sales supportAMC / service
Overview
A lightweight portable ultrasound system designed for diagnostic confidence and mobility across clinical environments.
The MX7 combines a compact form factor with advanced imaging and cardiovascular capabilities.
Key Highlights
Ultra-light main unit
Approximately 3 kg
44 mm slim design
Up to 8-hour battery operation
ZST+ platform
Customizable touch-screen workflow
Advanced cardiovascular applications
Tissue Doppler Imaging
Auto EF
Stress Echo
LVO
RIMT
R-VQS
Specifications
System
| Type | Dedicated portable ultrasound system |
|---|---|
| Platform | ZST+ channel-data processing |
| Weight | About 3 kg (main unit) |
| Thickness | 44 mm |
| Battery | Up to 8 hours |
| Advanced imaging | UWN+ contrast imaging, Natural Touch Elastography, iNeedle+ (linear & convex) |
| Cardiovascular tools | TTQA tissue tracking, Auto EF, Stress Echo, TDI (TVI, TEI, TVD, TVM), LVO, RIMT, R-VQS |

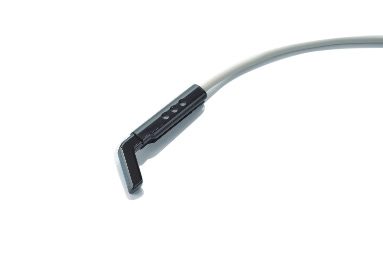

Transducers
| Transducer | Type | Highlights |
|---|---|---|
| C5-1s | 3T convex | High colour sensitivity, contrast imaging · biopsy kit NGB-031 |
| L13-3Ns | ComboWave linear | Balanced penetration & resolution, elastography · NGB-007 |
| L14-6Ns | ComboWave linear | High frequency, small footprint, elastography · NGB-007 |
| L20-5s | ComboWave linear | High frequency, high resolution, small footprint |
| L9-3s | ComboWave linear | Vascular performance, elastography · NGB-034 |
| L16-4Hs | Hockey stick | MSK & rheumatology, elastography |
| P4-2s | Phased array | 2.0 – 38.0 cm depth, low-MI contrast · NGB-011 |
| P10-4s | Phased array | 2.0 – 16.5 cm depth, paediatric & neonatal cardiac |
| P7-3Ts | TEE | 1.9 – 8.2 MHz, 90° FOV, adult cardiac |
| P8-3Ts | TEE | 2.8 – 7 MHz, 90° FOV, paediatric cardiac |
| CW2s | Pedoff (CW) | Continuous-wave Doppler for TCD |
Specifications are for reference only and may change without notice.
Suitable Applications
General ImagingCardiologyEmergency ImagingMobile DiagnosticsPoint-of-Care ImagingVascular Applications
From the Brochure
UWN+ contrast imaging detects 2nd harmonic and non-linear fundamental signals for enhanced sensitivity
Natural Touch Elastography reduces dependence on operator technique
iNeedle+ automatically detects needle angle on linear and convex transducers
