12-Channel Electrocardiograph – COMEN CM1200A
12-channel ECG machine with an 8.4" touch screen, simultaneous 12-lead acquisition and built-in printing for clinics, wards and ICUs.
Installation & commissioningAfter-sales supportAMC / service
Overview
12-channel ECG machine with an 8.4" touch screen, simultaneous 12-lead acquisition and built-in printing for clinics, wards and ICUs.
Features
12-lead acquisition with 12 ECG waveforms recorded simultaneously
8.4" LED touch screen with on-screen grid and 1:1 diagnosis display
Manual, auto and rhythm working modes
Print formats 12 × 1, 6 × 2 + 1R and 3 × 4 + 1R, with average template

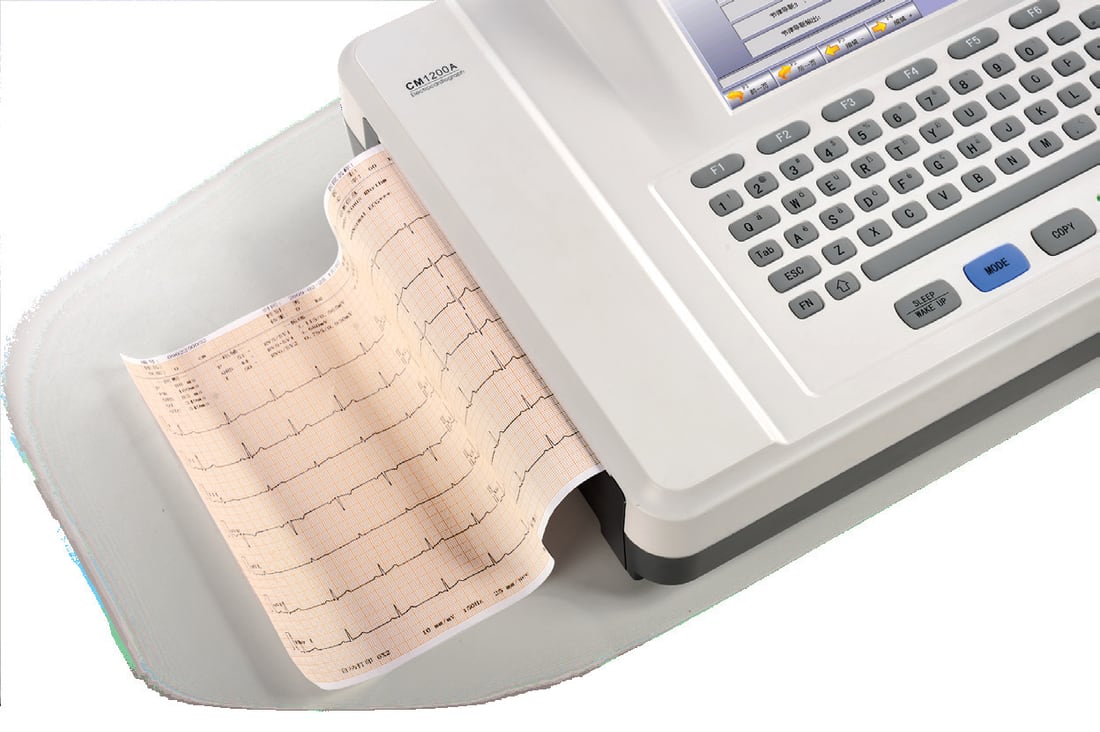

210 mm and 216 mm roll or Z-fold paper; A4 printing over USB without a computer
Alphanumeric keyboard and multi-language operation
Stores 300 ECG records; optional SD card holds 40,000 cases
USB data transfer, PC-ECG software support and external printer connection
AC / DC power with built-in battery for up to 4 hours
Specifications
Key Specifications — CM1200A
| Channels | 12-channel, simultaneous 12-lead acquisition |
|---|---|
| Display | 8.4" LED touch screen |
| Working modes | Manual, auto, rhythm |
| Print formats | 12 × 1, 6 × 2 + 1R, 3 × 4 + 1R; average template |
| Paper | 210 mm / 216 mm roll and Z-fold; A4 via USB printer |
| Storage | 300 records internal; up to 40,000 cases on optional SD card |
| Connectivity | USB, PC-ECG software, external printer |
| Input | Alphanumeric keyboard; multi-language |
| Power | AC / DC; built-in battery up to 4 hours |
Specifications are for reference only and may change without notice.
Applications
CardiologyOPDWardsICUHealth Check-ups
System Components
ECG machine, patient cable, electrodes and power adapter.
Accessories
ECG cable, chest and limb electrodes, thermal paper and compatible accessories.
